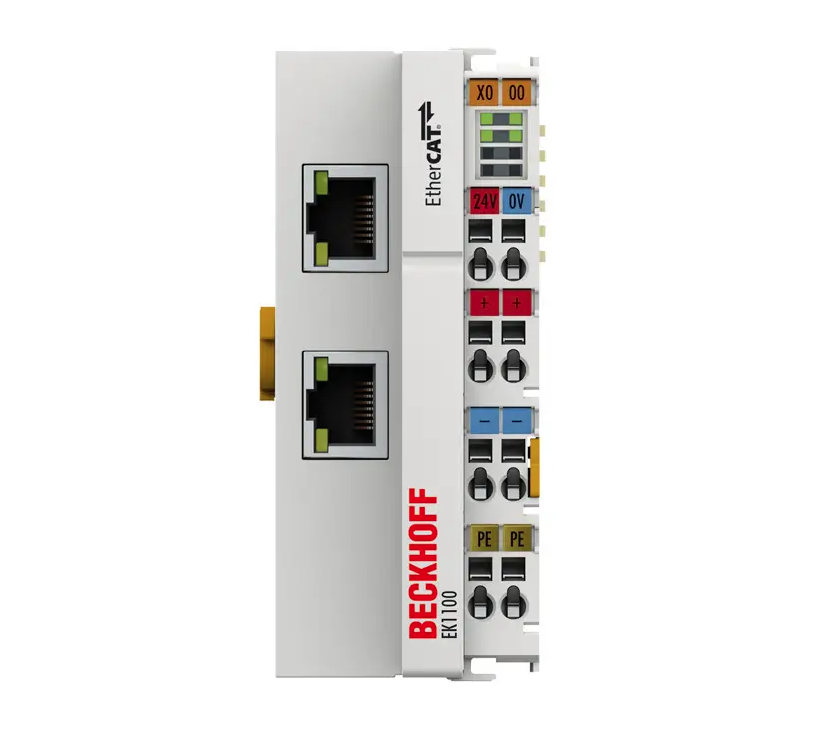

EK1100

Home

Manufacturer Manufacturer Right arrow

BECKHOFF

EK1100

BECKHOFF

EtherCAT Coupler

AVAILABLE

GET A QUOTE NOW

EK1100
Ethernet/EtherCAT cable (min. Cat.5), shielded
max. 100 m (100BASE-TX)
Number of EtherCAT Terminals - up to 65,534
Delay - approx. 1 µs
Data transfer rates - 100 Mbit/s
500 V (power contact/supply voltage/Ethernet)
max. 24 V DC/max. 10 A
-25…+60°C/-40…+85°C

Read less

EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL, ATEX, IECEx, DNV GL, cFMus
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
