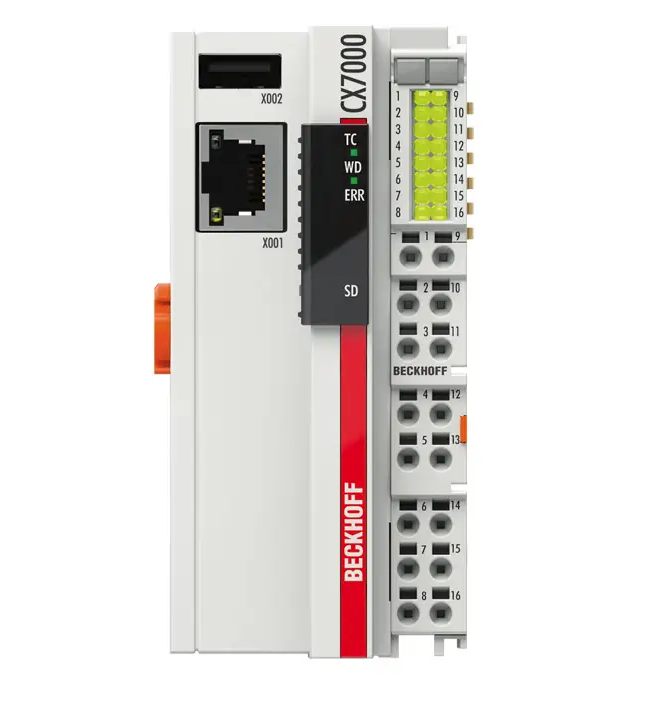

CX7000
BECKHOFF
Embedded PC with Arm Cortex-M7 and integrated I/OsAVAILABLE
GET A QUOTE NOW
- CX7000
- Processor: Arm® Cortex®-M7, 480 MHz, single-core
-
Memory:
-
32 MB SDRAM (internal, not expandable)
-
512 MB microsd card slot (expandable up to 16 GB)
-
-
I/O Interfaces:
-
8 digital inputs (24 V DC, 3 ms filter, Type 3)
-
4 digital outputs (24 V DC, 0.5 A, 1-wire technology)
-
-
Communication:
-
1 x Ethernet (RJ45, 10/100 Mbit/s)
-
1 x USB interface
-
-
Power Supply: 24 V DC (±20%), max 1.5 A
-
Dimensions: 49 mm x 100 mm x 73 mm
-
Weight: Approximately 142 g
-
Mounting: DIN rail
Read less
| Processor | Arm Cortex-M7, 480 MHz |
| Number of cores | 1 |
| Flash memory | slot for microSD card, 512 MB included (optionally expandable) |
| Main memory | 32 MB SDR (not expandable) |
| Number of inputs | 8 multi-functional inputs (24 V DC) |
| Number of outputs | 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire technique) |
| NOVRAM | 4 kB |
| Interfaces | 1 x RJ45 10/100 Mbit/s, 1 x USB |
| Cooling | passive |
| Bus interface | – |
| Data transfer rates | – |
| Diagnostics LED | 1 x TC status, 1 x WD, 1 x error, 1 x flash access |
| Clock | internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) |
| Operating system | TwinCAT/RTOS |
| Control software | TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V (-15%/+20%) |
| Current supply E-bus/K-bus | 1.5 A |
| Max. power consumption | < 2.0 W |
| Max. power consumption E-bus/K-bus | 7.5 W |
| Dimensions (W x H x D) | 49 mm x 100 mm x 73 mm |
| Weight | 142 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Included TwinCAT 3 Function | TC1000 TwinCAT 3 ADS, TC1100 TwinCAT 3 I/O, TC1200 TwinCAT 3 PLC, TF4100 TwinCAT 3 Controller Toolbox, TF4110 TwinCAT 3 Temperature Controller, TF6255 TwinCAT 3 Modbus RTU, TF6340 TwinCAT 3 Serial Communication, TF6701 TwinCAT 3 IoT Communication (MQTT), TF6730 TwinCAT 3 IoT Communicator, TF6760 TwinCAT 3 IoT HTTPS/REST |
| Approvals/markings | CE, UL |
Read less
