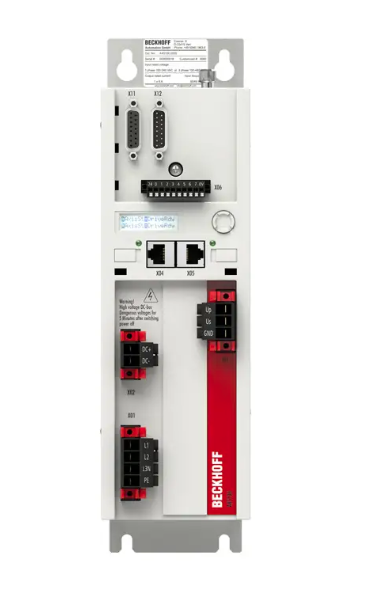

AX5112
BECKHOFF
Digital Compact Servo Drives 1-channelAVAILABLE
GET A QUOTE NOW
- AX5112
- Rated Supply Voltage: 3-phase 100…480 V AC ±10%
- Rated Output Current: 12 A
- Peak Output Current: 26 A
- DC Link Voltage: Maximum 875 V DC
- System Bus: EtherCAT
- Drive Profile: SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
- Feedback Compatibility: Supports SinCos 1 V PP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, and OCT
- Ambient Operating Temperature: 0…+50°C
- Dimensions (H x W x D): 317.7 mm x 92 mm x 232 mm
- Approvals/Markings: CE, cULus, EAC
Read more
Read less
Read less
| Function | servo drive |
| Channels | 1 |
| Rated supply voltage | 3 x 100…480 V AC ±10% |
| DC link voltage | max. 875 V DC |
| Rated output current (channel) | 12 A |
| Peak output current (channel) | 26 A |
| Feedback | SinCos 1 VPP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, OCT |
| System bus | EtherCAT |
| Drive profile | SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE) |
| Ambient temperature (operation) | 0…+50°C (see documentation) |
| Approvals/markings | CE, cULus, EAC |
